Double 3 Full Set

As low as £5,664.01 £4,720.01

SKU
DB-3FullSet
Double Robotics
Customize Double 3 Full Set
1 x Double 3 Full Set   + £5,261.60 £4,384.67
1 x Double Robotics - Charging Dock   + £397.70 £331.42

* Required Fields

Your Customization
Double 3 Full Set
Double 3 Full Set

In stock

£5,664.01 £4,720.01

Summary
    Double 3

    Self-Driving

    An array of 3D sensors enables Double 3 to understand its environment, where it’s safe to drive, and how to divert around obstacles to reach the destination. Built-in obstacle avoidance means that completely untrained drivers can drive Double 3 without fear of bumping into walls or people. Now you can give virtual tours of your facility to new customers who have never been there before! Driving down hallways and through narrow doorways is a breeze with automatic assisted driving correction.

    Double 3
    Double 3

    Unified Pan-Tilt-Zoom

    Two 13 Megapixel cameras provide an ultra-wide field of view and multiple levels of zoom. A new precision Gearmotor enables both cameras to physically tilt up and down. An advanced software algorithm combines all of the movement into one seamless user experience -- you just point to what you want to see. You can read everything -- from the paperwork on a desk in front of you to the whiteboard across the room.

    Click-to-Drive

    We have completely re-imagined the Double 3 driving experience. Simply click anywhere on the floor in front of you, and your Double will drive there, avoiding obstacles along the way. Because Double understands where it is safe to move, you no longer need to focus on the act of driving. Your camera view is enhanced with virtual 3D objects that highlight driveable areas, obstacles, and important places like your Charging Dock. This type of enhanced view is commonly referred to as Mixed Reality. Mixed Reality is like Augmented Reality, except virtual 3D objects are added into the live video stream, and they look and behave as if they are placed in the real world.

    Six Beamforming Microphones

    An advanced array of six microphones helps the driver hear people from farther away and with less background noise. The integrated audio system enables full-duplex audio (two-way simultaneous audio) to be more robust in challenging environments.

    Improving Upon Double 2

    Double 3 is fully integrated hardware. No iPad installation, Bluetooth pairing, or accessories are required, making setup much easier. Simply install the Double 3 Head onto the robot base with the one bolt, and it just works. Additionally, thanks to obstacle avoidance, driving is now safer, easier, and more reliable.

    Double 3 is designed with future features in mind. Over-the-air updates will enable new features over time. The Double 3 Head is also backward compatible with the older Double 2 robot base.

    Developer Friendly

    A Developer API enables customized applications to be built for Double. Modular subsystems allow developers to choose which features they need for their application. The tiered architecture provides hooks to sensor data and autonomous features at various levels. Various expansion ports and mounting points allow additional hardware to be added.

    First Look – Double 3 in the Warehouse

    Actual Driving Experience – Not Simulated

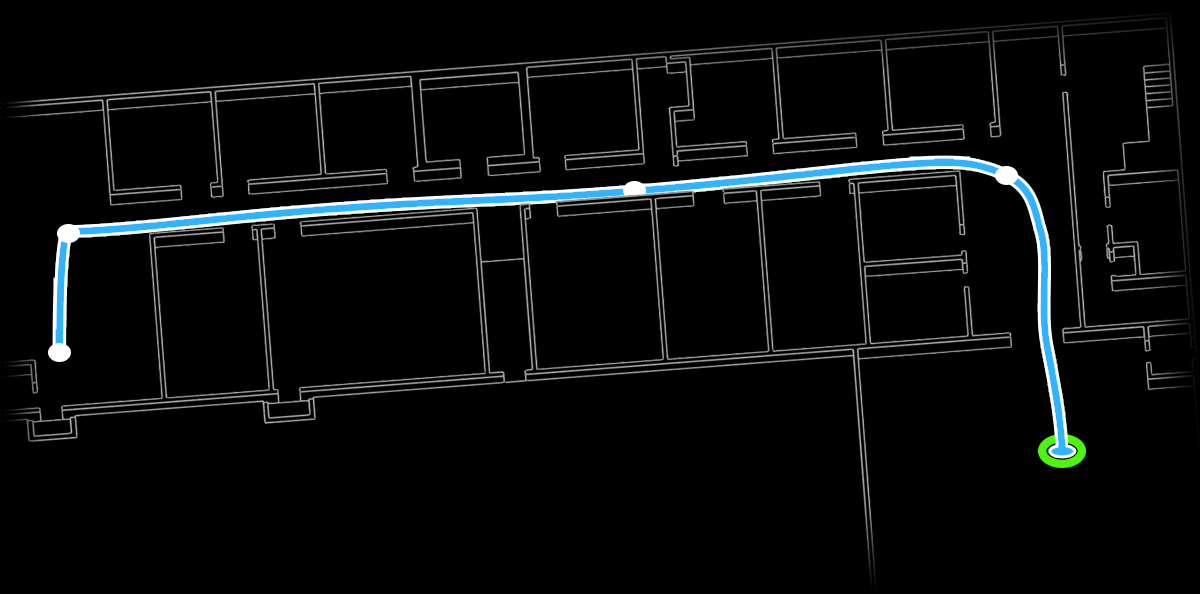

    Double 3 Map

    Automatic Mapping and Path Planning

    Coming soon to Fleet Management

    Fully Integrated Hardware

    Easy Setup and Configuration

    The all-new Double 3 head is designed to be robust and reliable for large deployments.

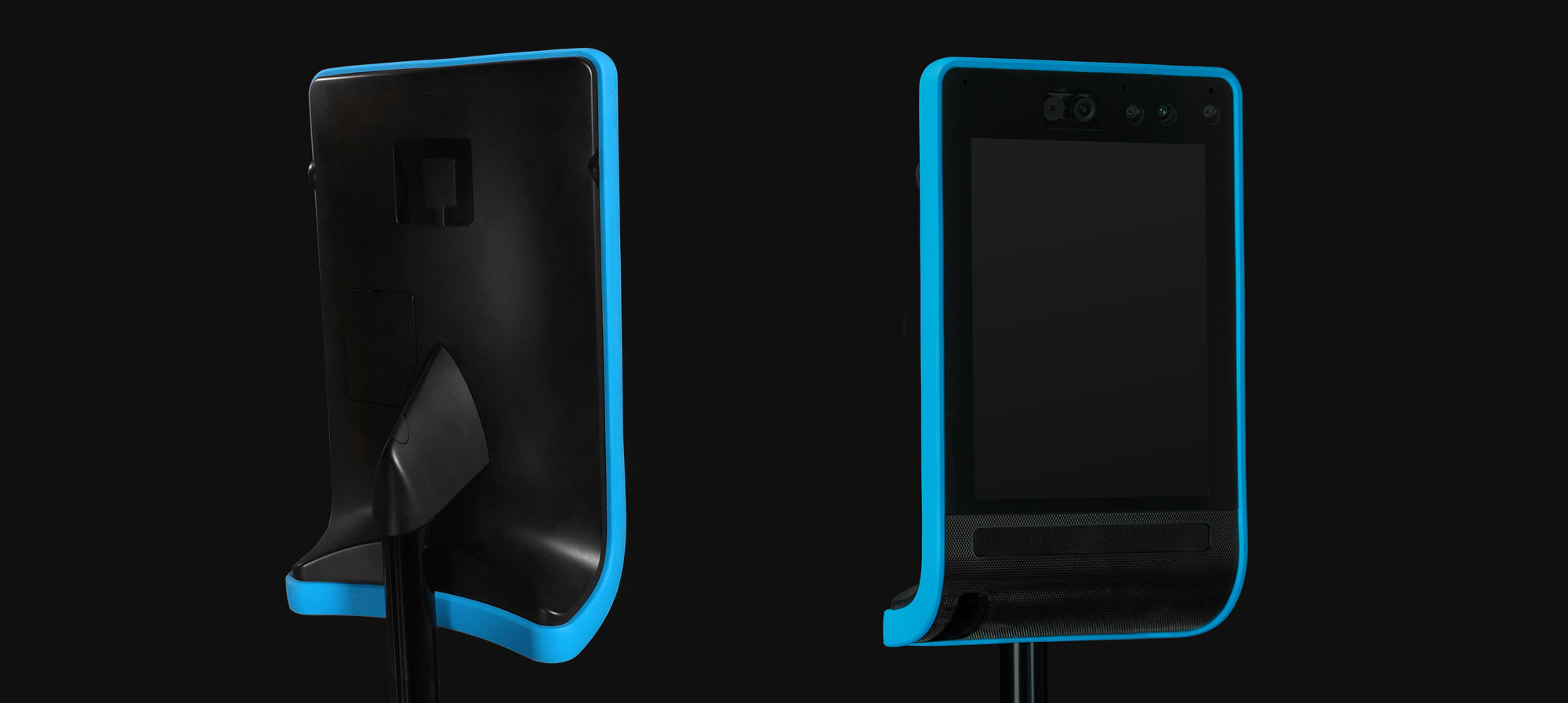

    Double 3 Spin
    Double 3 Map

    Advanced Suite of Sensors

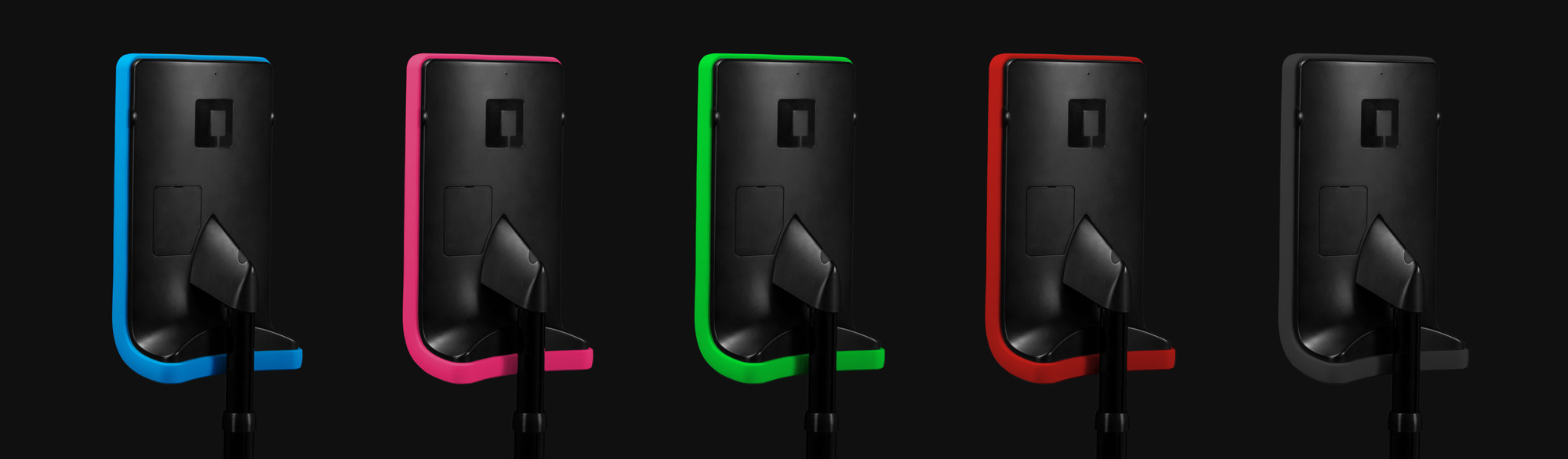

    Colors

    User-replaceable silicone rubber trim with 5 colors available

    You can choose a color that fits your style or company brand: Blue, Pink, Green, Red, or Gray

    Double 3 Spin

    Double 3 in the Office

    Driver Apps

    Drive your Double from anywhere in the world via Mac, PC/Windows, iPad, or iPhone.

    Google Chrome or Firefox is required for Mac and PC. iOS 8 or newer is required for iPad, iPhone, and iPod touch.

    Double 3 Spin
    Double 3 Spin

    Fleet Management

    Essential tools for telepresence admins.

    Deploy and manage dozens or hundreds of robots from one central dashboard on the web.

    Double 3 – Tech Specs

    Hardware

    Cameras:

    • 2 x 13 Megapixel Unified Pan/Tilt/Zoom Module
    • One super wide angle lens, one super zoom lens
    • 30 FPS and Night Vision Mode



    Audio:

    • 6 x Digital microphones with beamforming
    • 8-watt full range speaker

    Sensors:

    • 2 x Stereovision depth sensors (Intel® RealSense™ D430)
    • 5 x Ultrasonic range finders
    • 2 x Wheel encoders (2048 PPR each)
    • 1 x Inertial Measurement Unit (9 DoF)

    Display:

    • 9.7-inch LED-backlit multi-touch LCD
    • Remotely-adjustable height (47” to 60” tall)
    • 2 x Wheel encoders (2048 PPR each)
    • 1 x Inertial Measurement Unit (9 DoF)

    Processors, Memory, and Storage:

    • NVIDIA® Jetson™ TX2-4GB System-on-Module
    • 256-core NVIDIA® Pascal™ GPU Architecture
    • Dual-core NVIDIA® Denver 2 64-Bit CPU
    • Quad-core ARM® A57 Complex
    • 4GB 128-bit LPDDR4 Memory
    • 16GB eMMC 5.1 Flash Storage

    Wireless Connectivity:

    • Wi-Fi - Intel Dual-Band Wireless-AC (2.4GHz, 5GHz)
    • Bluetooth 4.2

    Battery:

    • 4 hours of runtime, 2 hour recharge time Li-ion

    Colors:

    • User-replaceable silicone trim (5 colors available)

    Developer Expansion:

    • 2 x USB 3.2 SuperSpeed ports
    • HDMI video output port
    • Top and rear hardware mounting points

    Software

    Core Features:

    • Unlimited Minutes
    • Click-to-Drive Mixed Reality UI
    • Pan–Tilt–Zoom
    • Motorized height control
    • Lateral Stability Control (LSC)

    Collaboration Features:

    • Multiple Driver Accounts
    • Visitor Pass
    • Screen Sharing (Chrome to robot's screen)
    • Multi-viewer Video (up to 5 simultaneous viewers)
    • Lateral Stability Control (LSC)

    Video Protocol:

    • WebRTC 128-bit AES encrypted

    Supported Driver Interfaces:

    • Mac or Windows PC with Chrome, Firefox, or Safari
    • iPad and iPhone, or Android with Chrome

    Fleet Management:

    • User account management
    • Scheduled Access Controls
    • Call Quality Reports
    • Aggregate all accounts by email domain
    • Google Apps Single Sign-On (SSO) Integration
    • Branded Subdomain
    • Branded User Interface
